AirFx Finish Mowers

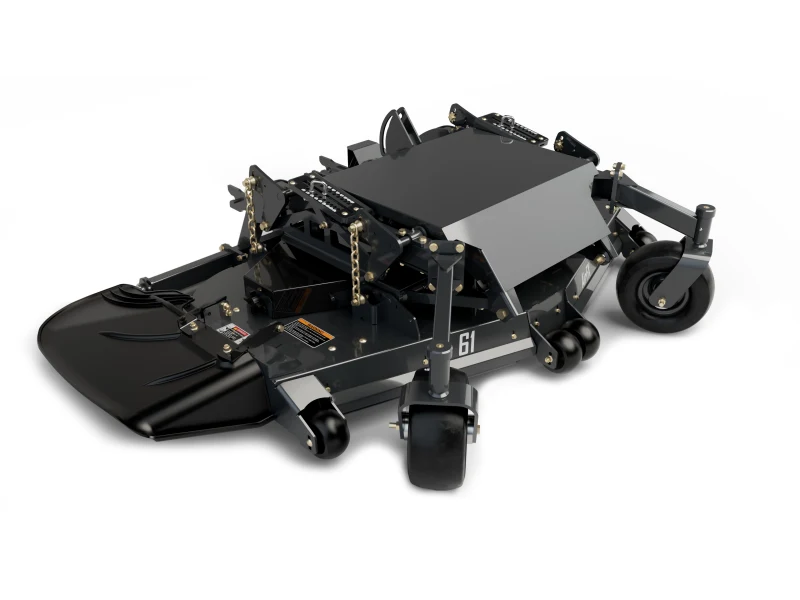

The Bobcat AirFX Finish Mower features an innovative cutting deck that delivers exceptional cut quality and efficiency. Its deep bullnose deck and patented bolt-on air-gap baffle system create a powerful vacuum for a cleaner, more even cut. Includes an extra-large discharge chute for optimal clipping dispersal and a self-cleaning design.
Specs
| Model Number | Cutting Width | Length | Width | Operating Weight | Spindle Drive | Spindles |
|---|---|---|---|---|---|---|
| AirFX – 61 | 61" | 62" | 76.5" | 540 lbs | Single "V" Belt | Deep groove, double-sealed |
| AirFX – 72 | 72" | 62" | 86.9" | 600 lbs | Single "V" Belt | Deep groove, double-sealed |
| Model Number | Cutting Width |
|---|---|
| AirFX – 61 | 61" |
| AirFX – 72 | 72" |
| Model Number | Length |
|---|---|
| AirFX – 61 | 62" |
| AirFX – 72 | 62" |
| Model Number | Width |
|---|---|
| AirFX – 61 | 76.5" |
| AirFX – 72 | 86.9" |
| Model Number | Operating Weight |
|---|---|
| AirFX – 61 | 540 lbs |
| AirFX – 72 | 600 lbs |
| Model Number | Spindle Drive |
|---|---|
| AirFX – 61 | Single "V" Belt |
| AirFX – 72 | Single "V" Belt |
| Model Number | Spindles |
|---|---|
| AirFX – 61 | Deep groove, double-sealed |
| AirFX – 72 | Deep groove, double-sealed |
Product specifications may not reflect the most current product details. Authorized Bobcat dealers retain the most current product specifications. All specifications should be verified by an authorized Bobcat dealer prior to purchase.
Overview

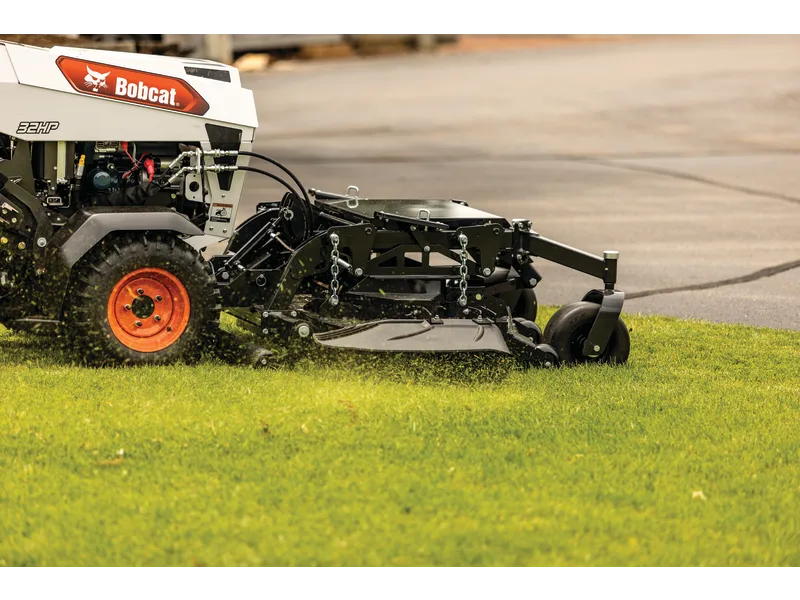

A Bobcat AirFX finish mower features a deep, bullnose deck and an innovative Air-Gap baffle system that creates a strong vacuum, lifting grass blades to the blade for a precise cut every time. The baffles move clippings efficiently through the deck and out an extra-large discharge chute, preventing clumping and keeping the deck cleaner. The hydraulic lift allows the operator to raise and lower the deck from their seat for on-the-go adjustments and transport.
Durability
- Built with structural steel channel for extreme durability
- Fully welded seams help prevent corrosion from the inside out
- Modular design with interchangeable parts
Ease of Use
- Pin-on coupler allows for quick and easy connection
- Tool-less top entry deck for cleaning
- 80° hydraulic flip-up capability
- Bolt-on baffle system allows for quick replacement of worn components
